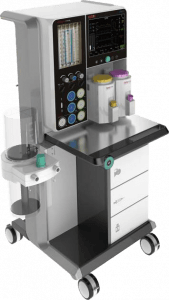

Anesthesia Workstation-Asteros Royale
| Features | |
|---|---|
| Expandable from basic anesthesia to high level ventilation parameters | Modular design, Light weight & Compact |
| Outstanding mobility | Strengthened safety system. |
| Convenient View safety system. | Low Flow through dual cascaded tubes of 02 and N20. |
| Supports vide range of vapourisers | Internationally designed GSM circle absorber system of effective recycling of gases. |
| Ergonomic design ventilator | Top space for mounting patient monitoring system |
| PHYSICAL |
|---|
| Construction: Tabular, Rigid Thermostat moulded with large drawer for storage. Four large diameter anti-static castor wheels providing easy mobility. Front castors have brakes. |
| PHYSICAL |
| Construction: Tabular, Rigid Thermostat moulded with large drawer for storage. Four large diameter anti-static castor wheels providing easy mobility. Front castors have brakes. |
| GAS INLETS |
|---|
| Cylinder yokes: Gas specific , pin indexed yokes with slinding steel clamping bar for 02 and N20 as per model: 2X02, 2XN20 Pipeline inlets: 02, N20 and Air pipeline inlets |
| CONTROL | |
|---|---|
| Pressure, Volume and Time controlled ventilator | Modes: VCV, PCV, SIMV+PSV, Manual, Standby |
| Breath Rate : 1 — 100 bpm | Tidal Volume : 20 — 1500 ml |
| l : E ratio : 4:1 - 1:10 | PEEP: Integrated Electronic PEEP: 4 — 30 cmH2O |
| Flow Trigger: 1 — 15 L/min | Insp. Time: 0.1 — 10 sec (Increment: 0.1 sec) |
| Pressure Limit : (PEEP+5) — 7O cmH2O | Pressure Control: 5 — 7O cmH2O |
| Pressure Support: 5 — 60 cmH2O | Inspiratory Pause: 5 — 50 % |
| TEMPRATURE COMPENSATED VAPORIZER(Optional) | |
|---|---|
| It is possible to use SELECTATEC Vaporizers of choice : Halothane / ISOFLURANE/ENFLURANE / SEVOFLURANE additionally installed with manifold for SELECTATEC Vaporizers. | Concentration increments 0-2 vol% in 0.2 intervals 2-6 vol% in 0.5 intervals ' 3 vol% safety lock |
| Agent capacity 2300 : 10ml | Non-contamination-baffle in the anesthetic agent reservoir can prevent chamber inside from contaminating due to accidental tilting or inverting |
| Mounting type : Selectatec | Weight : 6.6kg |
| lntellegent Breathing System |
|---|
| GSM absorber with Integrated Bellows & Sodalime Canister system offering highest absorption efficiency offering advance features like lnbuiltAPL Valve, Pressure Manometer for breath to breath AinNay pressure display, integrated 02 Sensor offering Fl02 Monitoring, Inspiratory & expiratory flow sensors ensuring accurate delivery & monitoring of Volume. |
| ALARMS SETTINGS | |
|---|---|
| Tidal Volume: 20 to 1500ml | Minute Volume: 1 to 40L |
| Frequency : 1 to 60bpm | AinNay Pressure: -12 to 100 cmH2O |
| Insp O2:21%to100% | High Continous Airway Pressure: Alarm when airway pressure exceeds ( PEEP + 15) cmH2O for 15 seconds |
| Negative Pressure : Alarm when airway pressure exceeds-1OCmH2O | Alarms for Apnea,O2 failure,Mains Failure, low battery. |
| PRESSSURE GUAGE | |
|---|---|
| Pressure gauge cylinder : 02 and N20 : O to 250 kg/cm2 | Pipeline systems : OZ/NZO/AIR, diameter-indexed |
| O2/N2O piping station block with pressure gauge and 5m hose (Optional) | |
| DISPLAY PARAMETERS | |
|---|---|
| Real time display of P-T, F-T, V-T waveforms &P-V, F-V loops, ETCO2 (Optional),A/C, Manual, Standby | Upto 4 waveforms & 2 loops simultaneously. |
| Multigas Monitoring Parameters (Optional) | Digital Flow Meter (Optional) |
| PRESSURE REDUCING REGULATORS |
|---|
| Highly efficient and reliable PRESSURE regulators (2 stage in PRIMA) for 02 and N20. N20 regulators are activated only if 02 regulators are pressurized. N20 regulators cut off on 02 supply failure |
| FLOWMETER | |
|---|---|
| 5 Tube long (230 mm) flowmeters calibrated in double scale for accuracy and clarity in reading.3 gas : O2, N2O,Air(PRIMA).Anti-hypoxia system: Minimum 25-30% 02 at about 3kg/cm2 (PRIMA) | Scale: O2:O.1-1LPM,1-10LPM N2O:0.1-1LPM,1-10LPM AIR: 0.1-10LPM |
| N20 SAFETY CUT-OFFVALVE FOR OXYGEN SUPPLYING FAILURE |
|---|
| When the pressure ofthe supplying oxygen drops bellow about 2.5kg/cm2, nitrous oxide will beautomatically shut off to protect a patient from the danger of hypo-oxygenation |
| VAPORIZER |
|---|
| Designed to install up to maximum TWO Selectatec vaporizers. Breathing Attachment: Standard Bains breathing Circuit |
| OPTIONS |
|---|
| Mox regulator with High Pressure Tubing for connecting to 10 Litres H20 capacity cylinder |
| OPTIONS | |
|---|---|
| Vent VII - 7" LCD Display with VCV ,PEEP Manual, Standby | Vent VIII - 8.4" LCD Display with VCV, PCV, SMV, A/C, Manual + Standby Mode |
| GENERAL | |
|---|---|
| Operating Power: 100 to 240 VAC, 50/60Hz, 6.5A | Battery: 12V DC, Battery backup:2 Hrs(full charge Time: 4 Hrs) |
| MONITORING | |
|---|---|
| lnsp tidal Volume: 0 to 2000ml | Exp tidal Volume: 0 to 2000ml |
| Minute Volume: 0 to 60L | |
| ALARM FOR OXYGEN SUPPLYING FAILURE |
|---|
| Audio visual Alarm with buzzer and LED indicator , for more than 7 seconds to warn a danger when the pressure of supplying oxygen drops bellow about 2.5kg/cm3 |
| OXYGEN FLUSH VALVE |
|---|
| Self-returning push Button Flow: 35-75 LPM at 4 kg/cm2 |
| DISPLAY |
|---|
| Screen: 12.1" Color LCD Display |
