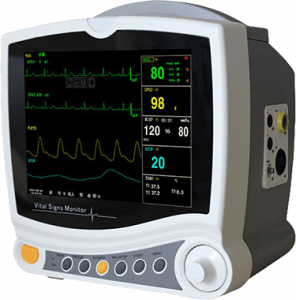

CMS 6800 Vital Signs Monitor
| Features | |
|---|---|
| 8.4 "TFT,LED backlight , 800x480 pixels. | Visual and Audio alarms, adjustable. |
| Patient managment, name and age and id. | Network with Central Station Software |
| Audio volume adjustable from I - 8 level. | Multi-language options: German, French, Italian, Turkish, etc |
| Built-in removable and rechargeable lithium battery | UI with both Keypad and Touch Screen operation. |
| more than 1000 pieces of archiveMemory: Built-in memory or miniSD Memory card. Store | Powerful data storage and managment, Trend graph, Trend table. etc. |
| NIBP | ||
|---|---|---|
| Method: Oscillometry | Mode: Manual/Auto/Continuous. | Measurement Range: Measuring Range:20-270mmHg |
| Temperature | |
|---|---|
| Channel :2 channels | Measurement Range :0-50 |
| Resolution: 0.1 | |
| ECG | |
|---|---|
| Lead mode: 3-lead or 5-lead | HR range: 15 - 300 bpm |
| Accuracy: ± Ibpm or ± 1%, which is greater | |
| Size and Weight | |
|---|---|
| Size: 210x 130x 210 (mm) | Net weight: 2.3kg |
| Pulse Rate | |
|---|---|
| Measurement Range: 0-250 bpm | Accuracy: -±2bpm |
| SPO2 | |
|---|---|
| Measurement Range: 0- 100% | Accuracy: -±2%(70%-100%) 0%- 69% unspecified |
| Respiration | |
|---|---|
| Measurement Range : Adult: 0-120mm padiatric/Neonate:0~15rpm | Apnea alarm:YES |
